Model |

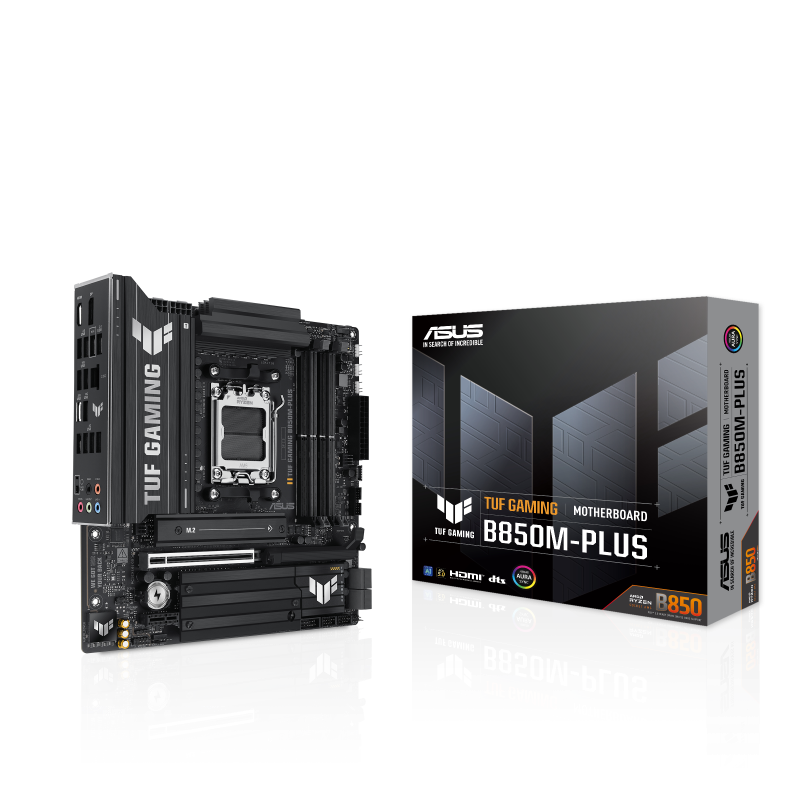

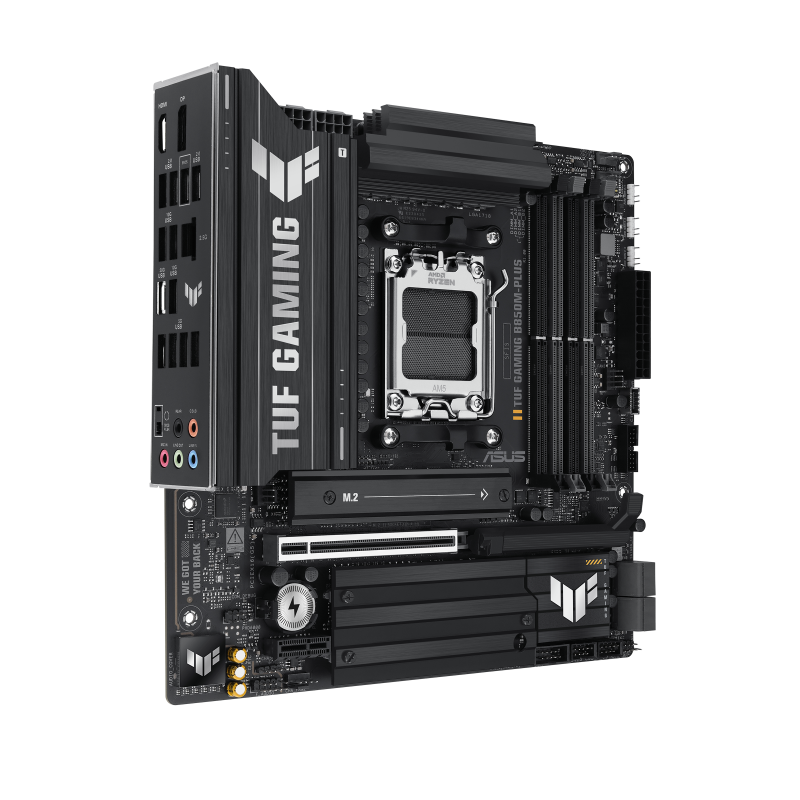

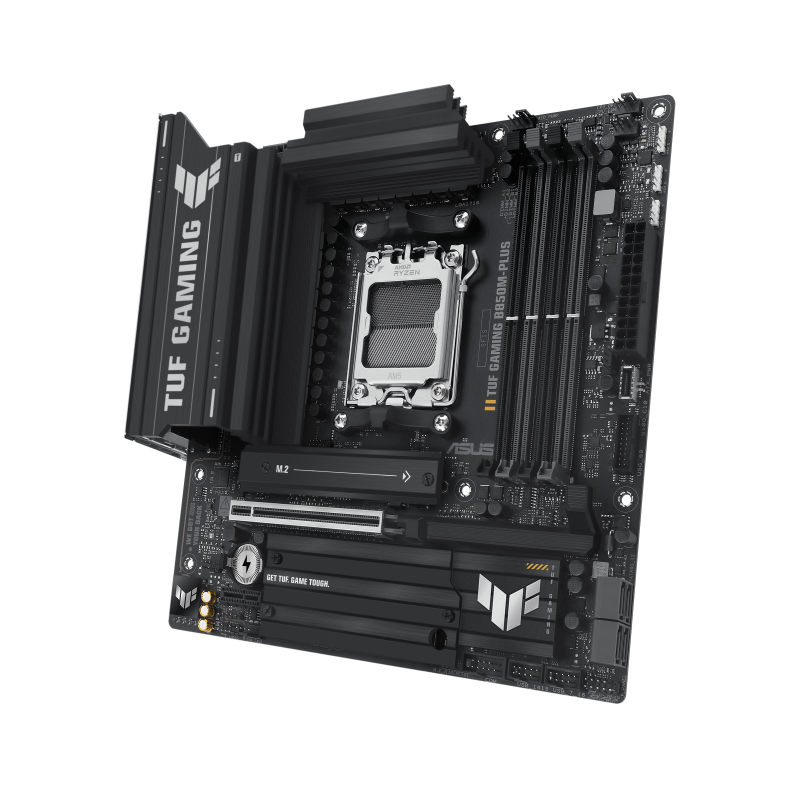

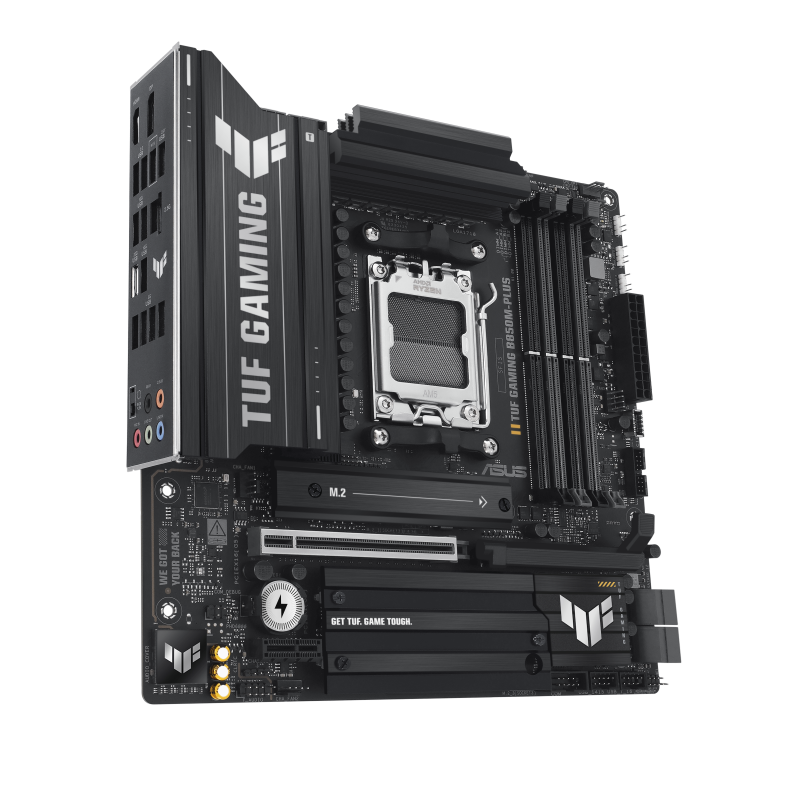

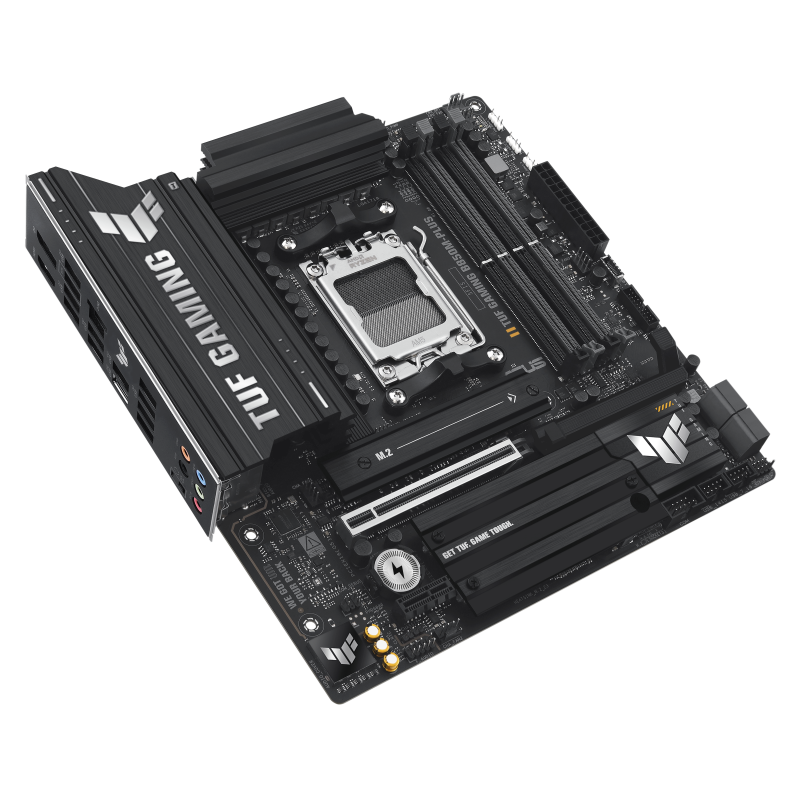

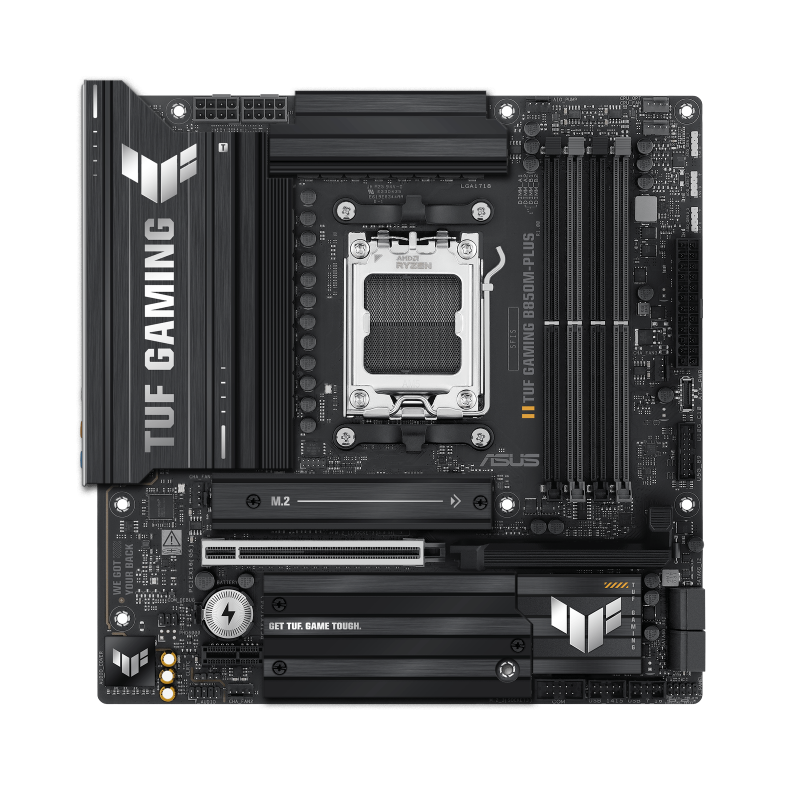

TUF GAMING B850M-PLUS |
CPU Support |
AMD Ryzen™ 9000, 8000, 7000 Series (Socket AM5) |
Chipset |
AMD B850 |
Memory |
4 x DDR5 DIMM slots, up to 256GB, up to 8000+ MT/s (OC), Dual Channel |
Memory Features |
ECC/Non-ECC un-buffered, AMD EXPO™, ASUS AEMP |
Graphics Outputs |
1 x DisplayPort 1.4 (8K@30Hz), 1 x HDMI 2.1 (4K@60Hz) |
Expansion Slots |
– 1 x PCIe 5.0 x16 (Ryzen 9000/7000)- 1 x PCIe 4.0 x1 |
Storage Options |
– 3 x M.2 (PCIe 5.0/4.0 depending on CPU)- 4 x SATA 6Gb/s |
RAID Support |
RAID 0/1/5/10 (varies by CPU series) |
Ethernet |
Realtek 2.5Gb Ethernet with TUF LANGuard |
Rear USB Ports |
1 x USB 20Gbps (Type-C®)3 x USB 10Gbps (Type-A)4 x USB 5Gbps (Type-A)4 x USB 2.0 (Type-A) |
Front USB Headers |
USB 10Gbps (Type-C®), USB 5Gbps (x2), USB 2.0 (x4) |
Audio |
Realtek ALC1220P 7.1 Surround Sound, 120 dB SNR playback, 113 dB SNR input |
Audio Enhancements |
Audio shielding, Premium capacitors, De-pop circuit |

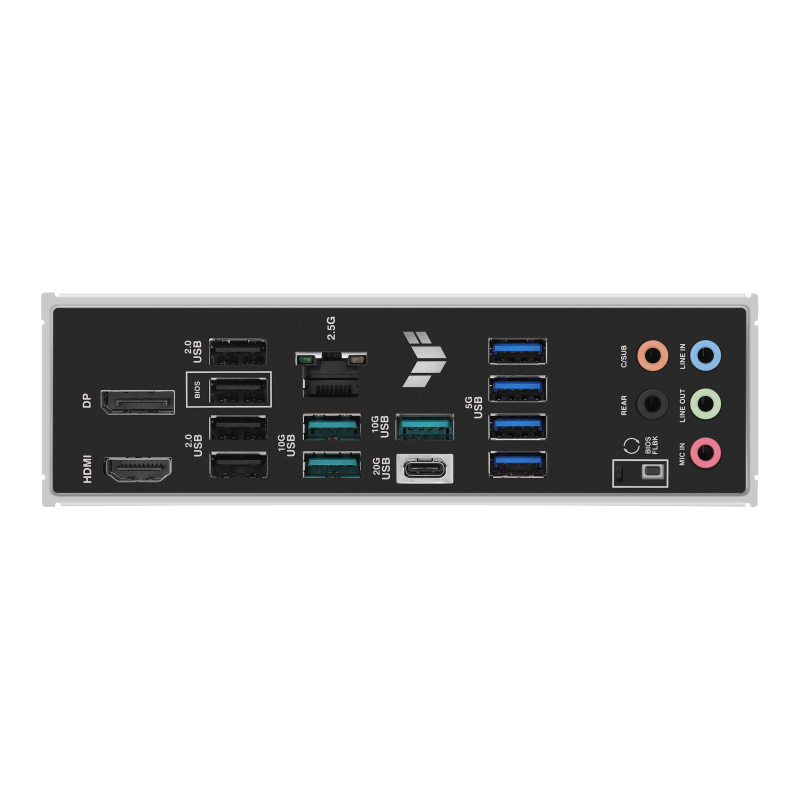

Back Panel I/O |
DisplayPort, HDMI, Ethernet, 5 x Audio jacks, BIOS FlashBack™ button |
Internal Headers |
AIO Pump, 4 x Fan, 3 x ARGB Gen 2, Clear CMOS, COM, Front Audio, F_PANEL |
Special Features |
ASUS TUF Protection, Q-Design, M.2 heatsinks, Pre-mounted I/O shield |
Software |
Armoury Crate, Fan Xpert 4, DTS Audio, TurboV Core, Norton 360 (60-Day Trial) |
BIOS |
256Mb UEFI AMI BIOS, ASUS EZ Flash 3, MyHotkey |
Form Factor |
micro-ATX (24.4 x 24.4 cm / 9.6 x 9.6 inch) |
Accessories |

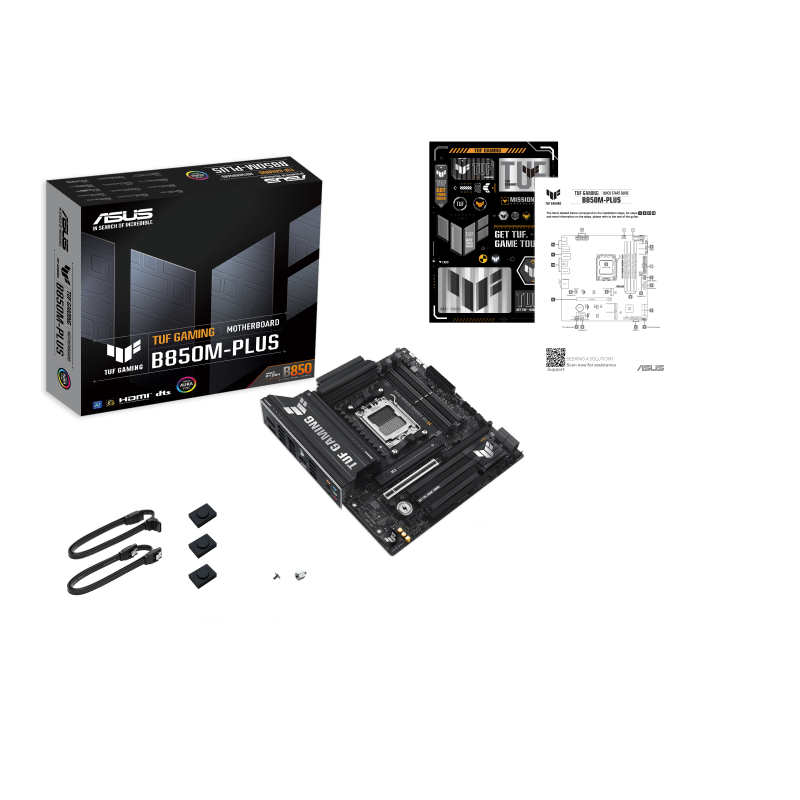

2 x SATA Cables, M.2 Screws & Rubber Kits, TUF Sticker, Quick Start Guide |
OS Compatibility |
Windows 11, Windows 10 64-bit |
